Axletrac ATHD200 – Heavy-Duty Alignment Tool Kit

Description

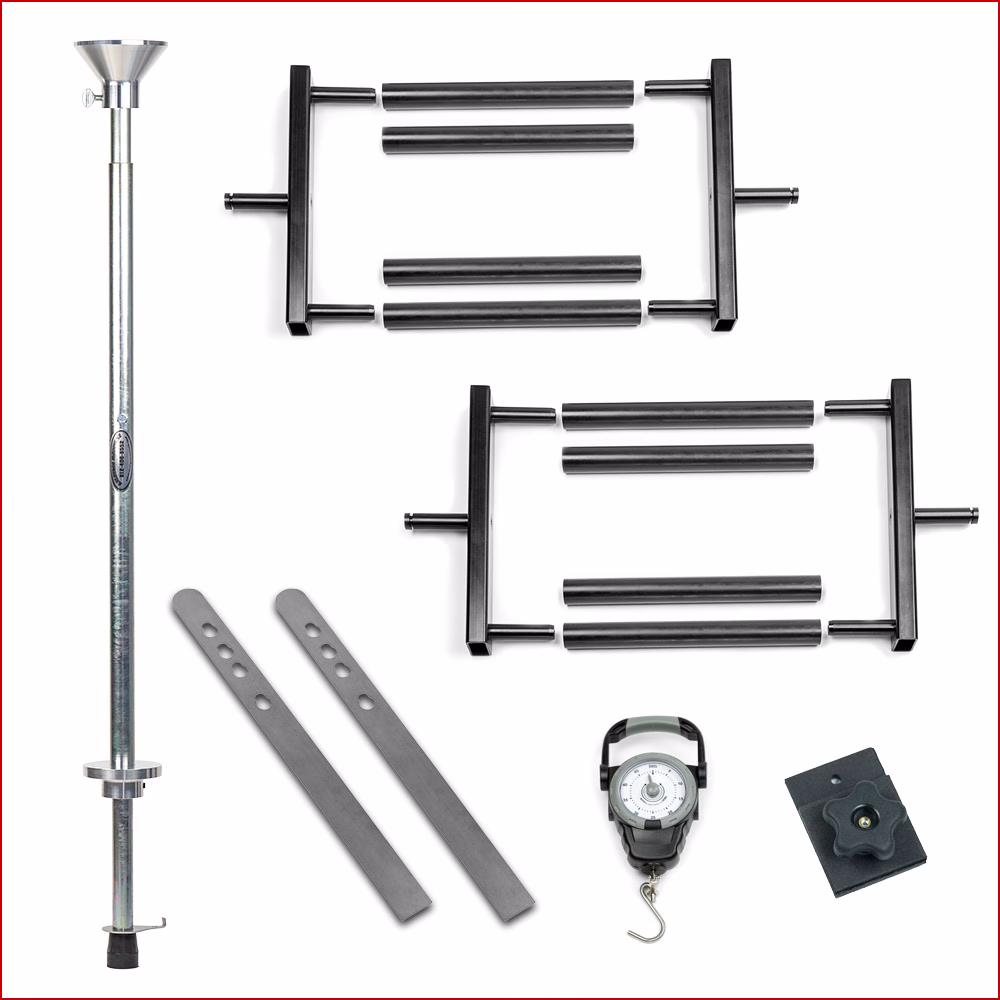

This kit includes the following:

HDKPX2000 Kingpin Extension:

The HDKPX2000 simplifies kingpin alignment by extending the measuring point from 38.5” to 52” in 1½” increments, ensuring precision in axle-to-kingpin alignment. Built with rugged 7/32” heavy wall steel tubing, this tool features a spring-loaded cone to hold the extension securely in place, while the bullseye level ensures plumb alignment in all directions. A tape hook adds convenience for seamless measurement operations.

• Adjustable Length: Extends from 38.5” to 52”
• Spring-Loaded Cone: Ensures stable and secure measurements
• Bullseye Level: Provides precise plumb alignment
• Integrated Tape Hook: Easily connects to tape measures, making axle alignment measurement a one-person job.

TM2000 Tension Meter:

The TM200 Tension Meter ensures consistent pull pressure, eliminating guesswork for precise alignment tasks. Lightweight and user-friendly, this device maintains 6-7 pounds of tension, ensuring accurate and reliable measurements.

• Adjustable Grip Knob: Provides controlled tension
• Lightweight Design: Easy to handle and use
• Purpose: Maintains optimal pull pressure for accurate alignments

Axletrac AT1125-2 Dual Axle Alignment Tool Set (10-stud):

The AT1125-2 is engineered for dual-axle alignments with 7/32” heavy wall steel tubing and 3/4” solid steel pins, offering unmatched durability and precision. The patented design centers extension tubes perfectly on axle ends with no exposed external threads, ensuring long-lasting performance and accuracy. This set is ideal for hub piloted/unimount style hubs with a 10-stud 285.75mm bolt circle.

• Includes: 8 extension tubes and 4 span bars
• Weight: 18 lbs per axle (36 lbs total)
• Compatibility: Hub piloted/unimount style hubs with 10-stud 285.75mm bolt circle
• Warranty: 3-year limited warranty against manufacturing defects

PB2000 Plumb Bars (set of two)

A durable 16-gauge steel accessory for the Axle End Extender, featuring four fixed height settings for precise ground measurements. Ideal for pneumatic tankers, drop decks, “low boys”, liquid tankers, flatbeds, dolly racks, and dolly mounts. Also effective for livestock trailers, auto haulers, reefers, and trailers with belly boxes or aerodynamic side skirts.

What’s Included:  2 plumb bars

Features: Four fixed height settings
